Smooth PVDF facing
A 10 μm white film option for a clean RV-roof appearance and easy cutting. Any weathering claim is tied to the agreed facing and supporting test data.

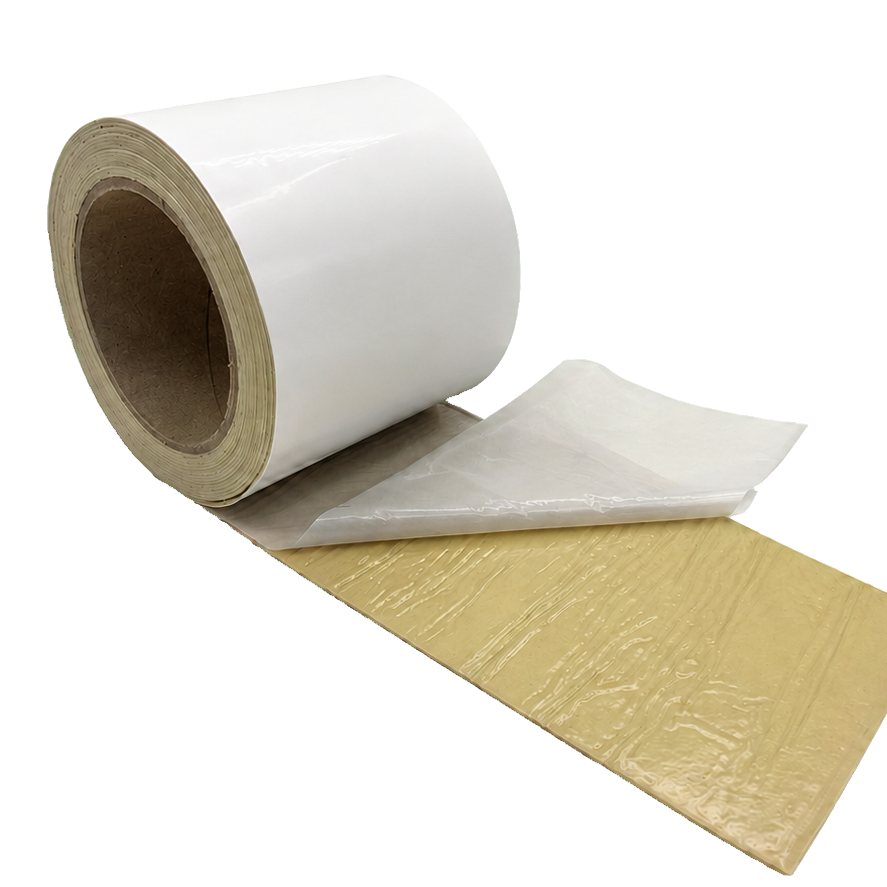

OEM RV ROOF REPAIR TAPE
RV roof repair tape for a cleaner seal.
Develop a private-label RV repair tape around your market—not a generic roll with a new sticker. We configure the facing, adhesive, dimensions and retail presentation, then follow the details through production and shipment.
✓ Smooth white PVDF facing option✓ Butyl thickness and handling configured by SKU✓ Private-label packaging and installation guidance
Recommended constructionPVDF + Butyl
Easier installationPractical liner release, handling and clear application steps
Lower failure riskCheck layer bonding, edge behavior and the actual roof substrate
Stronger retail offerClean white finish, imperial sizes and private-label presentation
MATERIAL ARCHITECTURE
Three layers. Each one has a job.
Selected butyl adhesive
Available in grey, pale yellow or white, with thickness adjusted to the substrate, handling and target cost.
Thin release liner
Transparent PET or grey-black PE options designed for clean removal during installation.
CONSTRUCTION OPTIONS
One application. Multiple commercial routes.
Choose the structure that fits your product tier, climate, substrate and sales channel. We can compare samples before the final specification is locked.
PVDF + Butyl
A smooth white PVDF film paired with a selected butyl layer for RV roofs, seams, vents and edge details.
PVDF facing option · Clean white finish
TPE + Butyl
A softer, more conformable TPE film option for curves and irregular details. Layer bonding is confirmed on the proposed construction.
Flexible handling · Close detail conformity
Aluminum + Butyl
A practical reflective construction for metal details, flashing and buyers who prefer a familiar metallic surface finish.
Reflective barrier · Familiar metal finishChoose by performance priority
PVDF is the clean white facing route, TPE favors flexibility, and aluminum foil offers a familiar reflective surface. Weathering, layer integrity and substrate compatibility are confirmed against the agreed sample and test plan.
WHAT BUYERS ACTUALLY NOTICE
Quality shows at the edges.
A roll can look fine in the carton and still fail in summer. We focus on the issues that create returns, poor reviews and damaged brand trust.
01
Edge ooze
Adhesive formulation and roll construction are checked for bleeding, residue and hot-weather softening.
02
Layer separation
Facing-to-adhesive lamination is treated as a critical process, especially for the firmer PVDF film route.
03
Vertical creep
The proposed butyl layer is evaluated for placement stability under the agreed temperature and application conditions.
04
Difficult handling
Clean liner release, controlled tack and easy cutting make installation more predictable for retail users.
CONFIGURABLE SPECIFICATION
Built in metric. Sold in the units your market uses.
Standard combinations speed up sampling. Width, length, thickness, color and packaging can be adjusted around your existing listing or new product concept.
Popular retail starting points4 in × 10 ft4 in × 50 ft6 in × 10 ft6 in × 50 ft
FacingSmooth white PVDF film; 10 μm standard
AdhesiveSelected butyl rubber; yellow, grey or white
Release linerTransparent PET or grey-black PE film
Total thickness0.8 / 1.0 / 1.2 / 1.5 / 2.0 mm · approx. 32 / 39 / 47 / 59 / 79 mil
Standard widths5 / 7.5 / 10 / 15 / 30 cm · approx. 2 / 3 / 4 / 6 / 12 in
Custom width5 cm to 1 m · approx. 2 in to 39 in
Roll lengths3 / 5 / 10 / 15 / 20 m · approx. 10 / 16 / 33 / 50 / 66 ft
Facing colorsWhite standard; black, grey, tan and custom colors subject to MOQ
Temperature requirementsConfirm the target climate, installation temperature and required test method by SKU
InstallationApply to a clean, dry, prepared and compatibility-tested surface; confirm the minimum application temperature by SKU
Performance limits, shelf life and substrate claims are added to the approved specification only after the product construction and supporting test method are agreed.
SURFACE COMPATIBILITY
Substrates for compatibility evaluation.
The list is a test brief, not a universal-compatibility claim. Evaluate adhesion on the actual substrate, coating, aged surface and cleaning system before production approval.
EPDMTPOPVCAluminumGalvanized steelFiberglassWoodRigid roof details
Not recommended: silicone or silicone-treated surfaces.
Paintable option: select a compatible facing and verify the coating system by sample.
EVIDENCE BEFORE CLAIMS
Define the test before publishing the number.
Temperature resistance, peel strength, roof compatibility and service-life claims depend on the exact construction and test method. We turn the buyer’s market requirement into an agreed evidence plan before a claim reaches the box or listing.
Project-specific inspection records or external testing can be arranged after the specification, method and cost responsibility are agreed.
Heat stabilityCheck movement, edge condition and adhesive residue at the agreed temperature and duration.
Low-temperature flexibilityEvaluate the facing and adhesive construction against the buyer's climate requirement.
Substrate adhesionTest peel and handling on the actual roof material, coating and cleaning method.
Layer integrityReview facing-to-adhesive bonding, overlap behavior and edge lift before claims are approved.
INSTALLATION
Simple handling. Serious surface preparation.
Good tape cannot compensate for contamination, loose sealant or silicone. Clear packaging instructions reduce avoidable customer complaints.
01
Clean and dry
Remove dirt, oil, moisture, loose coating and failed sealant. Do not apply over silicone.
02
Measure and cut
Allow enough overlap around seams, vents, penetrations and damaged roof areas.
03
Peel gradually
Hold the tape in position, then pull the liner back from underneath in stages as the adhesive settles onto the roof.
04
Press firmly
Use a roller or firm hand pressure across the full width, paying particular attention to edges.
OEM & PRIVATE LABEL
Ready for the shelf, listing or distributor carton.
Packaging is developed around your route to market. Carton quantity is calculated after the final width, length and roll diameter are confirmed.
- Printed color boxes or economical label-based packaging
- Brand labels, barcodes, instruction cards and multi-piece kits
- Amazon-friendly imperial dimensions and listing consistency
- MOQ confirmed after construction, dimensions and packaging are defined
- Typical sample preparation: one week
- Typical production lead time: 15 days after approval
FROM SAMPLE TO SHIPMENT
Quality control that follows the order.
The approved sample and written specification remain the reference from raw-material confirmation through loading.
01 / MATERIALConfirm the construction
Facing, adhesive color, thickness, liner and dimensions are aligned before volume production.
02 / PRODUCTIONInspect before and during production
Pre-production samples and in-process checks help identify deviations before the full order is completed.
03 / SHIPMENTCheck, document and load
Finished rolls, packing and shipping marks are sampled again, with photos shared before and during loading.
START WITH A SAMPLE
What should your RV tape do better?
Send your current size, target market, packaging idea or competitor sample. Small product details are recorded, answered and followed through.
